Automatic Extinguisher in Cabinet

Product Information

FL-XT Series(Compact Enclosure Fire Suppression Device)

Compact fire suppression device that automatically detects and extinguishes fires in small, confined spaces

Extinguishing agent discharge port

Fully sealed container design

Lightweight, compact design for installation in cabinet-type switchboards and control panels.

Heat-triggered activation (glass bulb)

Halogenated Extinguishing Agent

Installation Target

MCC control panels for continuously operating equipment (ventilation, exhaust, drainage) in underground facilities.
Inverters and connection panels for solar installations where limited maintenance access increases fire risk.
Switchboards, electrical and control panels, server rooms, server racks, and conveyors used on production lines.
Switchboards and HVAC outdoor units in high-heat, fire-prone areas such as traditional markets (dense vendor stalls).

For electrical enclosures at risk of overheating fires—DB/SB/CP/MPP, MCC, UPS, Telecom Cab., Battery Cab., INV/CONV, ESS Cab.—and HVAC ODU. Ideal for enclosed/semi-enclosed spacesto contain fire spread.

각종 캐비닛 이미지

Features

Semi-permanent Service Life
US PATENT
Made in Korea Precision hand-finished
Temp. detection for all models
KC Mark KFI Type Approval
K-Mark certified
Rapid response in 1–3 seconds
Automatic discharge
Simple installation
Multi Option (monitoring system)

Proven performance and
track record over 6 years since launch.

Spec.Small

Installation Method :
Flexible top mounting

KTL Certification : PB12021-016

FL-XT 360 FL-XT 120 FL-XT 40

FL-XT 40
Equipment Categories	Fire Extinguishing Equipment for Small Spaces
Fire Test Model	300 × 200 × 700
KFI Design Protected Volume(㎥)	0.03
K-Mark Protected Volume(㎥)	0.04
Fire Detection	Glass Bulb
Activation temperature	68℃
Ambient Activation temperature	-20~50℃
Service Life	Semi-permanent

FL-XT 120
Equipment Categories	Fire Extinguishing Equipment for Small Spaces
Fire Test Model	400 × 300 × 1000
KFI Design Protected Volume(㎥)	0.089
K-Mark Protected Volume(㎥)	0.12
Fire Detection	Glass Bulb
Activation temperature	68℃
Ambient Activation temperature	-20~50℃
Service Life	Semi-permanent

FL-XT 360
Equipment Categories	Fire Extinguishing Equipment for Small Spaces
Fire Test Model	600 × 500 × 1200
KFI Design Protected Volume(㎥)	0.26
K-Mark Protected Volume(㎥)	0.36
Fire Detection	Glass Bulb
Activation temperature	68℃
Ambient Activation temperature	-20~50℃
Service Life	Semi-permanent

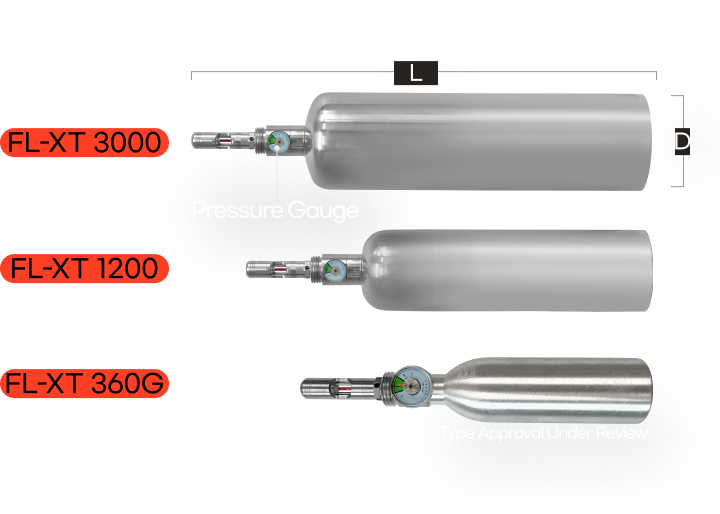

Spec.Medium

Installation Method :
Vertically on the top side

FL-XT 3000 FL-XT 1200 FL-XT 360G

FL-XT 360G
Equipment Categories	Automatic Gas Fire Extinguishing System
Fire Test Model	600 × 600 × 1,000
KFI Design Protected Volume(㎥)	0.36
Fire Detection	Glass Bulb
Activation temperature	68℃
Ambient Activation temperature	-20~50℃
Service Life	Semi-permanent

FL-XT 1200
Equipment Categories	Automatic Gas Fire Extinguishing System
Fire Test Model	900 × 900 × 1,500
KFI Design Protected Volume(㎥)	1.215
Fire Detection	Glass Bulb
Activation temperature	68℃
Ambient Activation temperature	-20~50℃
Service Life	Semi-permanent

FL-XT 3000
Equipment Categories	Automatic Gas Fire Extinguishing System
Fire Test Model	1,200 x 1,200 x 2,000
KFI Design Protected Volume(㎥)	2.88
Fire Detection	Glass Bulb
Activation temperature	68℃
Ambient Activation temperature	-20~50℃
Service Life	Semi-permanent

Spec.Large

Installation Method :
Vertically on the top side

FL-XT 6000 FL-XT 10000

FL-XT 6000
Equipment Categories	Automatic Gas Fire Extinguishing System
Fire Test Model	1,500 x 1,500 x 2,500
KFI Design Protected Volume(㎥)	5.625
Fire Detection	Glass Bulb
Activation temperature	68℃
Ambient Activation temperature	-20~50℃
Service Life	Semi-permanent

FL-XT 10000
Equipment Categories	Automatic Gas Fire Extinguishing System
Fire Test Model	1,800 x 1,800 x 3,000
KFI Design Protected Volume(㎥)	9.72
Fire Detection	Glass Bulb
Activation temperature	68℃
Ambient Activation temperature	-20~50℃
Service Life	Semi-permanent

Examples of Protected Volume

Small unit: cm


FL-XT 40	FL-XT 120	FL-XT 360
Protective Coverage 0.04m³	Protective Coverage 0.12m³	Protective Coverage 0.36m³

Medium unit: cm


FL-XT 1200	FL-XT 3000
Protective Coverage 1.215m³	Protective Coverage 2.880m³

Large unit: cm


FL-XT 6000	FL-XT 10000
Protective Coverage 5.625m³	Protective Coverage 9.72m³

Monitoring system for FL-XT

The FL-XT automatic fire suppression system provides real-time monitoring of fire events and system anomalies. If an irregularity is detected, it immediately sends alerts through the dashboard and notification channels (SMS, email, WhatsApp, Messenger).
