FL-XT FLame eXTinguish

Rapid Early-Stage Fire Suppression

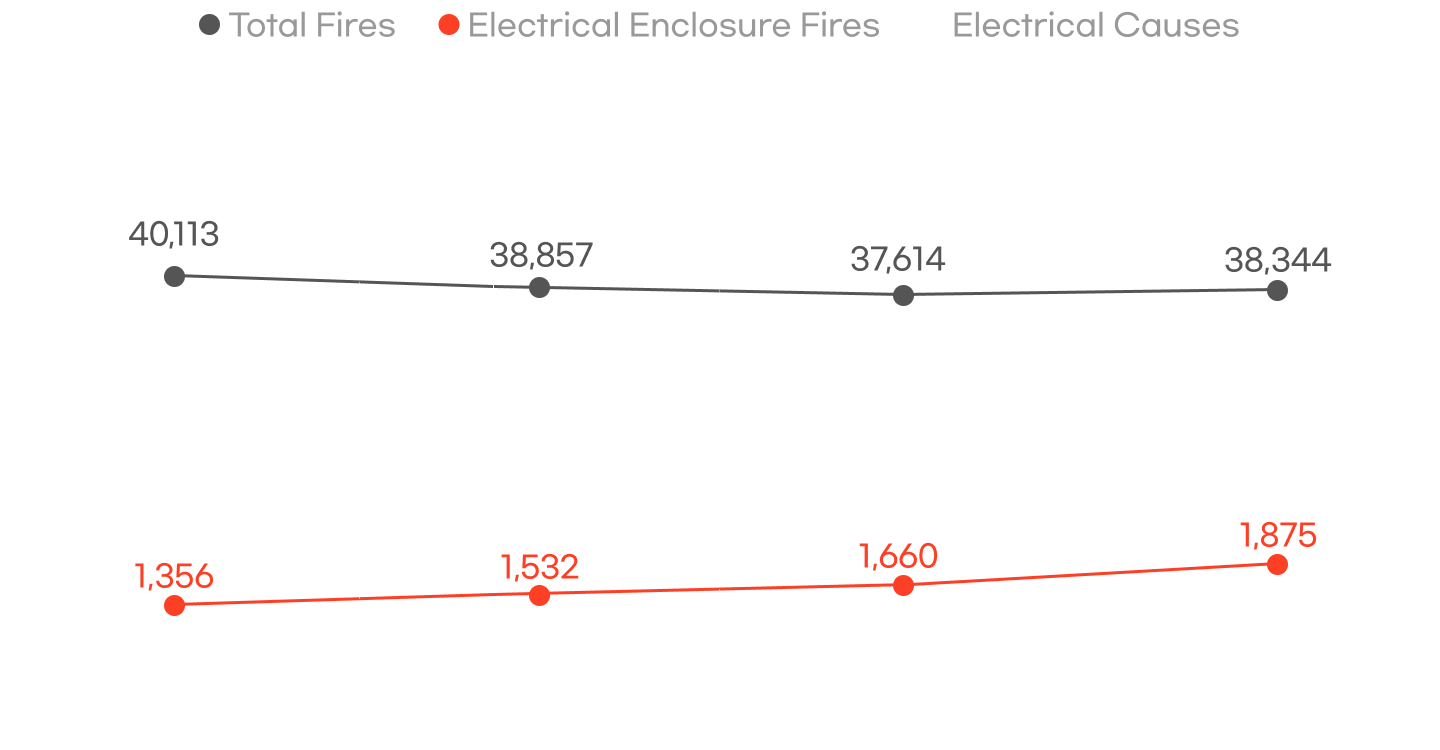

Annual Fire Incident Trends (South Korea)

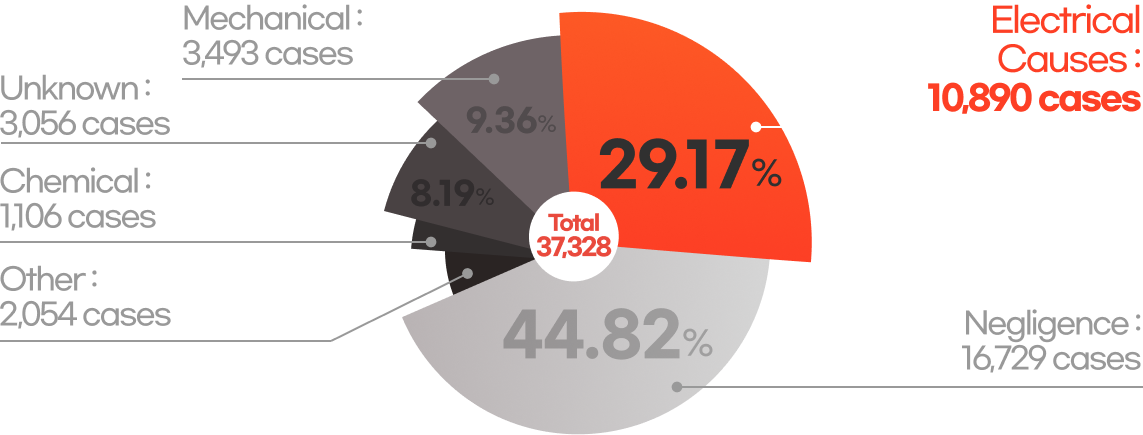

CAUSES OF FIRES IN KOREA (2025)

Fire Causes in Korea

[Source : Korea National Fire Data Center]


Real-World Customer Test Footage (Door Open) - FL-XT

FL-XT: Rapid, automatic early-stage fire suppression.

Product Information

FL-XT Series(Small-Space Fire Suppression Device)

Compact fire suppression device that automatically detects and
extinguishes fires in small, confined spaces

Extinguishing agent discharge port

Fully sealed container design

Lightweight and small-scale, designed for use with cabinet-type panel boards, etc.

Automatic heat-convection detection

Halogenated Extinguishing Agent

소공간 소화용구

Installation Target

  • MCC control panels of always-on power devices for ventilation, exhaust, or drainage in underground facilities
  • Inverters and connection panels for solar power installations that pose a higher fire risk due to limited accessibility by maintenance personnel
  • Panel/switch boards, electrical and control panels, server rooms, computing racks, and conveyors used on manufacturing lines, etc.
  • Panel/switch boards, condensing units, etc. in heat-generated, fire-prone areas such as traditional markets

For electrical enclosures at risk of overheating fires—DB/SB/CP/MPP, MCC, UPS, Telecom Cab., Battery Cab., INV/CONV, ESS Cab.—and HVAC ODU. Ideal for enclosed/semi-enclosed spaces to contain fire spread.

각종 캐비닛 이미지

Features

  • Semi-permanent lifespan

    Semi-permanent Service Life

  • US PATENT

    US PATENT

  • Made in Korea Precision hand-finished

    Made in Korea Precision hand-finished

  • Temp. detection for all models

    Temp. detection for all models

  • Competitive price

    KC Mark KFI Type Approval

  • K-Mark certified

    K-Mark certified

  • Rapid response in 1–3 seconds

    Rapid response in 1–3 seconds

  • Automatic discharge

    Automatic discharge

  • Simple installation

    Simple installation

  • Simple installation

    Multi Option (monitoring system)

Established track record with certified performance
for 6 years since product launch

Spec.Small

Installation Method : Flexible top mounting

KTL Certification : PB12021-016

FLXT40 FLXT120 FLXT360
Classification FL-XT 40 FL-XT 120 FL-XT 360
Equipment Categories Fire Extinguishing Equipment for Small Spaces
Fire Test Model 300 x 200 x 700 400 x 300 x 1000 600 x 500 x 1200
KFI Design Protected Volume(㎥) 0.03 0.08 0.25
K-Mark Protected Volume(㎥) 0.04 0.12 0.36
Fire Detection Glass Bulb
Operating Temperature 68℃
Ambient Operating Temperature -20~50℃
Service Life Semi-permanent

Spec.Medium

Installation Method : Vertically on the top side

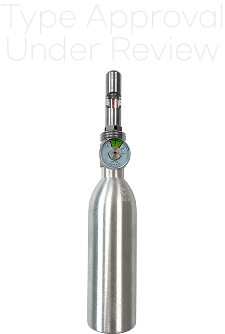

FLXT360g FLXT1200 new_FLXT3000
Classification FL-XT 360G FL-XT 1200 FL-XT 3000
Equipment Categories Automatic Gas Fire Extinguishing System
Fire Test Model 600 x 600 x 1,000 900 x 900 x 1,500 1,200 x 1,200 x 2,000
KFI Design Protected Volume(㎥) 0.36 1.215 2.88
Fire Detection Glass Bulb
Operating Temperature 68℃
Ambient Operating Temperature -20~50℃
Service Life Semi-permanent

Spec.Large

Installation Method : Vertically on the top side

FLXT6000 FLXT10000
Classification FL-XT 6000 FL-XT 10000
Equipment Categories Automatic Gas Fire Extinguishing System
Fire Test Model 1,500 x 1,500 x 2,500 1,800 x 1,800 x 3,000
KFI Design Protected Volume(㎥) 5.625 9.72
Fire Detection Glass Bulb
Operating Temperature 68℃
Ambient Operating Temperature -20~50℃
Service Life Semi-permanent

Examples of Protected Volume

Small Cm Medium Cm Large Cm
FL-XT 40 FL-XT 120 FL-XT 360 FL-XT 1200 FL-XT 3000 FL-XT 6000 FL-XT 10000
Protected Volume
0.04m³		 Protected Volume
0.12m³		 Protected Volume
0.36m³		 Protected Volume
1.215m³		 Protected Volume
2.880m³		 Protected Volume
5.625m³		 Protected Volume
9.72m³

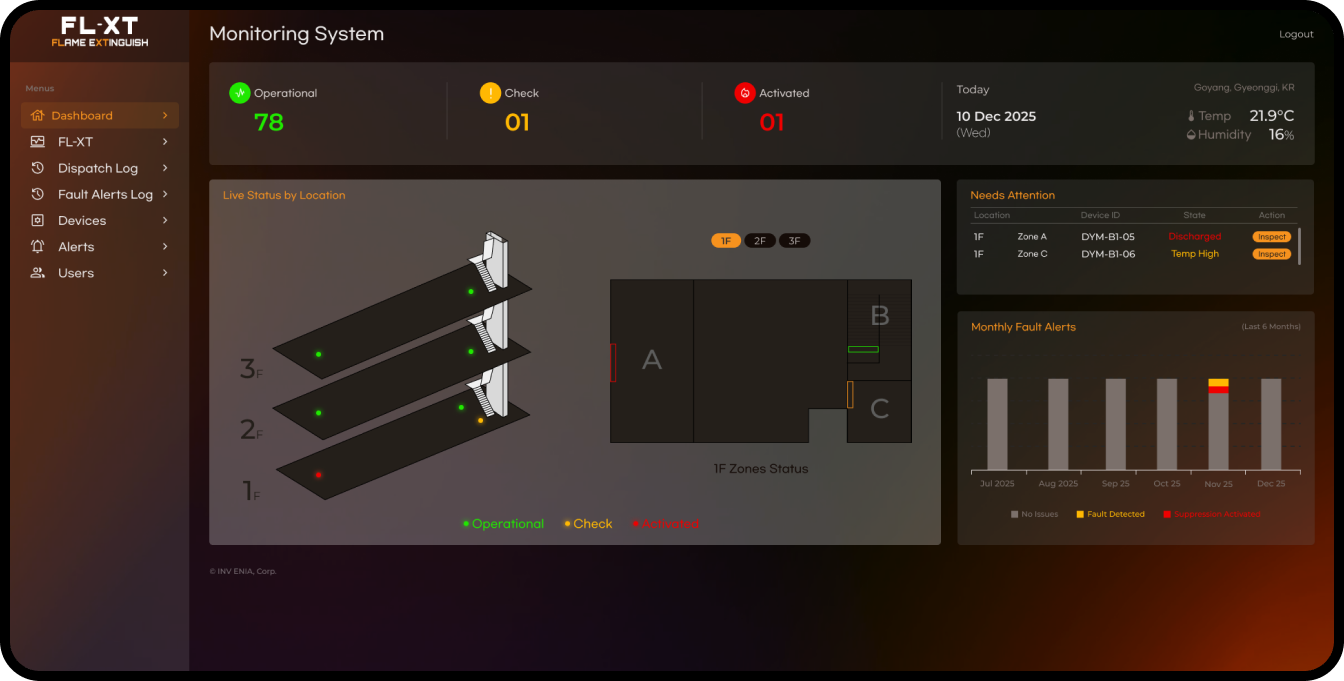

Monitoring system for FL-XT

The FL-XT automatic fire suppression system provides real-time monitoring of fire incidents and system anomalies. Upon detecting any irregularities, it promptly sends out alerts via system displays, SMS, WhatsApp, Messenger, email.

  • 소화/이상현상 알람 Fire/problem Alerts Messenger/email/etc.
  • 소화/이상현상 알람 Dashboard Real-time monitoring
  • 소화/이상현상 알람 Alert /Trans log Anomaly log
  • 소화/이상현상 알람 Custom Map Location display
    (optional)
  • 소화/이상현상 알람 Interfacing with
    other systems     ERP, G/W etc.
  • 소화/이상현상 알람 API provided Customized
    service
  • 소화/이상현상 알람 Equipment
    management     Reg., mod.,

Monitoring systemProcess

Small space fire occurrence FL-XT automatic fire suppression device operation
모니터링 시스템 작동
Monitoring system
operation
  • Monitoring system
    alert
  • Text message, email
    alert
  • Our monitoring
    alert response

Photos of Installation Process

Before During After

Installation Cases

Air Conditioner's Condensing Units




Fire Suppression at Dangjin Cultural Center

Fire Suppression at Dangjin Cultural Center

Certification and Patent Status

U.S. Patent Certificate
