2022 Fire Causes in Korea
Number of Fires by Cause of Ignition
Electrical
factors:
10,011 cases Others
2,909 Unknown
3,670 Mechanical
factors
3,856 Negligence
19,667
factors:
10,011 cases Others
2,909 Unknown
3,670 Mechanical
factors
3,856 Negligence
19,667
Number of Electrical Equipment Fires
Switch/
panel boards
494cases Batteries/
capacitors:
161 Integrating
wattmeters
110 Solar power
generation
99 Low voltage
circuit breakers
71 Others
421
panel boards
494cases Batteries/
capacitors:
161 Integrating
wattmeters
110 Solar power
generation
99 Low voltage
circuit breakers
71 Others
421
[Source : Korea National Fire Data Center]
Product Information
FL-XT Series(Compact Space Fire Extinguishing Equipment)
Compact fire suppression device that automatically detects and
extinguishes fires in small, confined spaces
Extinguishing agent discharge port
Fully sealed container design
Lightweight and small-scale, designed for use with cabinet-type panel boards, etc.
Automatic detection of heat flow
Halogenated Extinguishing Agent
Installation Target
- MCC control panels of always-on power devices for ventilation, exhaust, or drainage in underground facilities
- Inverters and connection panels for solar power installations that pose a higher fire risk due to limited accessibility by maintenance personnel

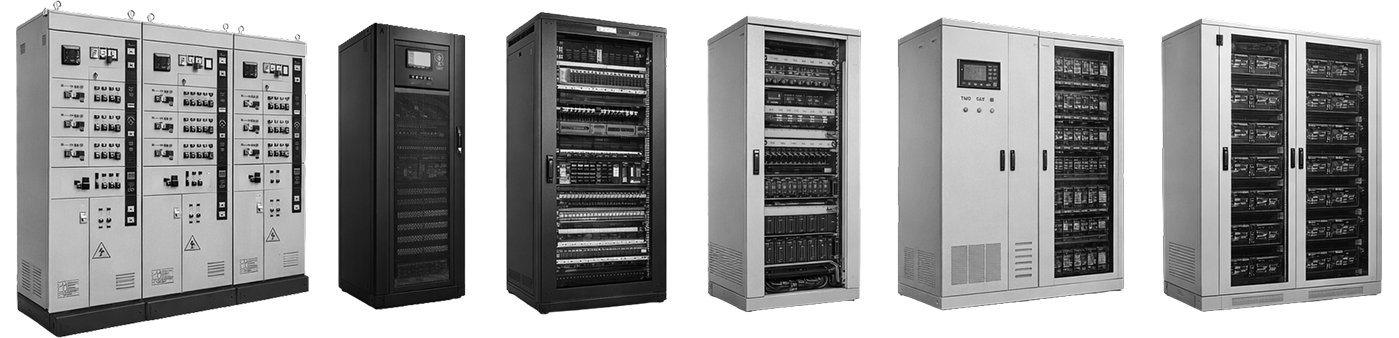

- Panel/switch boards, electrical and control panels, server rooms, computing racks, and conveyors used on manufacturing lines, etc.
- Panel/switch boards, condensing units, etc. in heat-generated, fire-prone areas such as traditional markets
Switch boards and panel boards at risk of overheating and subsequent fire incidents Ideal for preventing the spread of fires in spaces that are either fully enclosed or semi-enclosed
Features
Established track record with certified performance
for 4 years since product launch
Monitoring system for FL-XT
The FL-XT automatic fire suppression system provides real-time monitoring of fire incidents and system anomalies. Upon detecting any irregularities, it promptly sends out alerts via system displays, SMS, WhatsApp, Messenger, email.
-
Fire/problem Aerts
Messenger/email/ect
-
Dashboard
Real-time monitoring
-
Alert /Trans log
Anomaly log
-
Custom Map
Location display
(optional) -
Interfacing with
other systems ERP, G/W etc. -
API provided
Customized
service -
Equipment
management Reg., mod.,
Monitoring systemProcess
Small space fire occurrence
FL-XT automatic fire
suppression device operation
Monitoring system
operation
- Monitoring system
alert - Text message, email
alert - Our monitoring
alert response
Spec.Small
Installation Method : Flexible top mounting
KTL Certification : PB12021-016
 |
 |
 |
 |
|---|---|---|---|

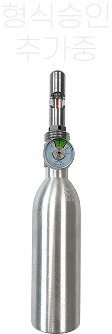

| Classification | FL-XT 40 | FL-XT 120 | FL-XT 360 |
| Protective Coverage | Up to 0.04m³ (40L) | Up to 0.12m³ (120L) | Less than 0.36m³ (360L) |
| Content Weight (g) | 56g | 76g | 215g |
| Container Thickness (mm)/ Thread Size (inch) |
1.2mm / ½-20” | 2.0mm / 5 / 8-18” | 2.0mm / 5 / 8-18” |
| HFC-125 Agent (g) | 56g | 76g | 215g |
| Activation Temp. (℃) | 68℃ | 68℃ | 68℃ |
| Charging Gas & Pressure | N₂ : 7.0Mpa | N₂ : 7.0Mpa | N₂ : 7.0Mpa |
| Ambient Temp. for Operation (℃) | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 |
| Diameter (D), Length (L) | 30mm, 200mm | 30mm, 240mm | 40mm, 320mm |
Spec.Medium
Installation Method : Vertically on the top side
KTL Certification : PB12021-016
 |
 |
 |
|---|---|---|

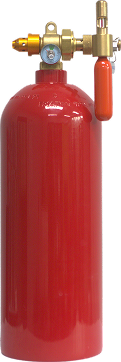

| Classification | FL-XT 1200 | FL-XT 3000 |
| Protective Coverage | Up to 1.2m³ (1,200L) | Up to 2.9m³ (3,000L) |
| Container Weight / Content Weight (g) |
2,625g / 980g | 6,370g / 3,400g |
| HFC-125 Agent (g) | 980g | 1,900g |
| Activation Temp. (℃) | 68℃ | 68℃ |
| Charging Gas & Pressure | N₂ : 4.2Mpa | N₂ : 2.5Mpa |
| Ambient Temp. for Operation (℃) | -20 ~ +40 | -20 ~ +40 |
| Diameter (D), Length (L) | 85mm, 325mm | 114mm, 464mm |

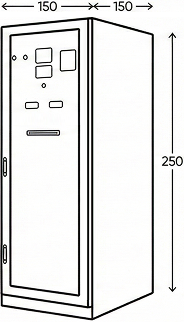

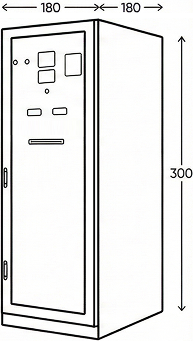

Examples of Protective Coverage
| Small Cm | Medium Cm | |||
|---|---|---|---|---|
 |
 |
 |
 |
 |
| FL-XT 40 | FL-XT 120 | FL-XT 360 | FL-XT 1200 | FL-XT 3000 |
| Protective Coverage 0.04m³ = 40ℓ |
Protective Coverage 0.12m³ = 120ℓ |
Protective Coverage 0.36m³ = 360ℓ |
Protective Coverage 1.215m³ |
Protective Coverage 2.880m³ |
Photos of Installation Process
| Before | During | After |
|---|---|---|
 |
 |
 |
 |
 |
 |
Installation Cases
Air Conditioner's Condensing Units
Fire Suppression at Dangjin Cultural Center
Certification and Patent Status
 |
 |
 |
 |

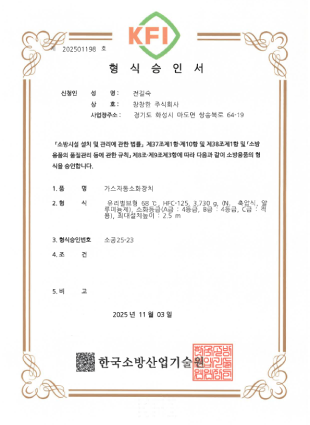

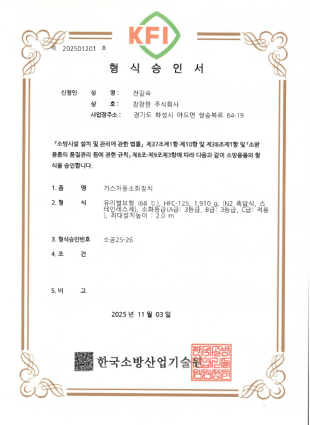

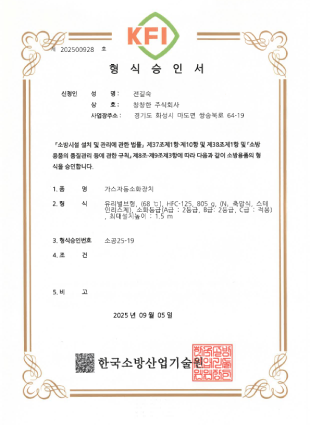

| K-Mark Certification | KFI Mark Certificate (FL-XT 40) |
KFI Mark Certificate (FL-XT 60) |
KFI Mark Certificate (FL-XT 120) |
 |
 |
 |
 |
| Patent for Invention Certificate | Design Registration Certificate | ||
 |
|||
| U.S. Patent Certificate | |||
